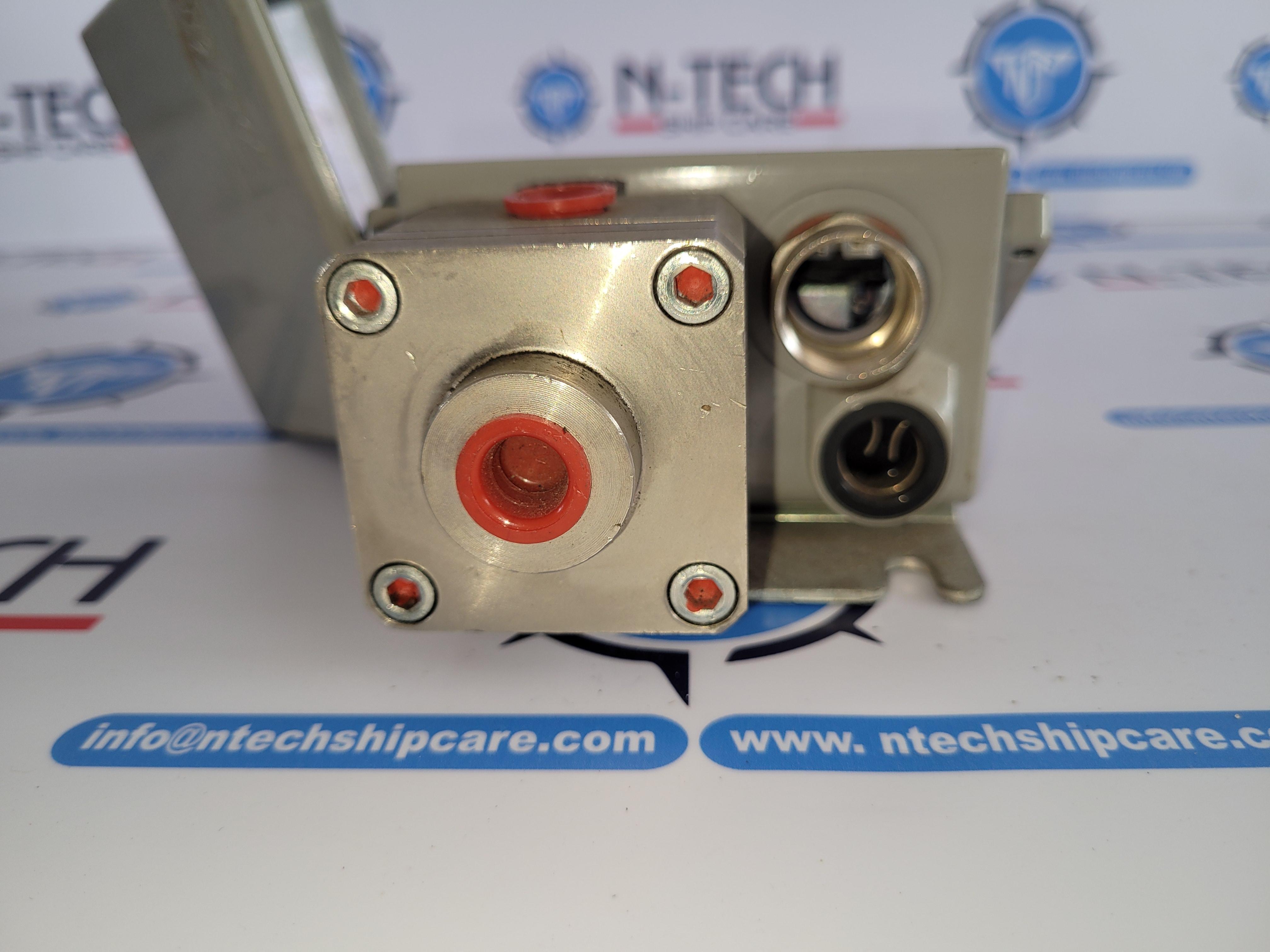

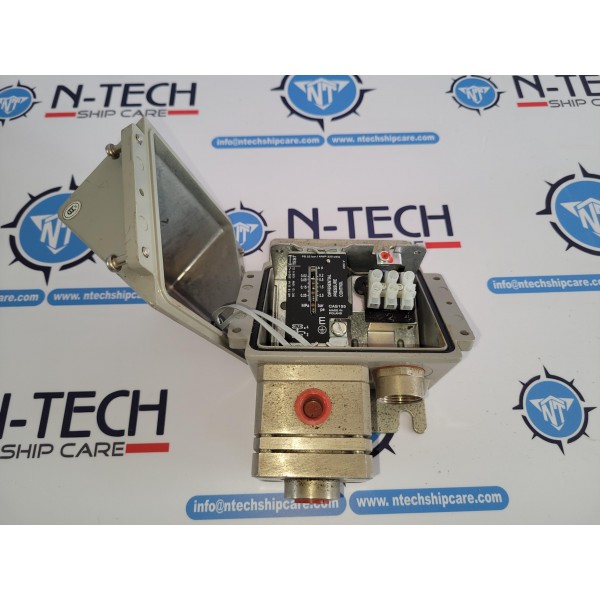

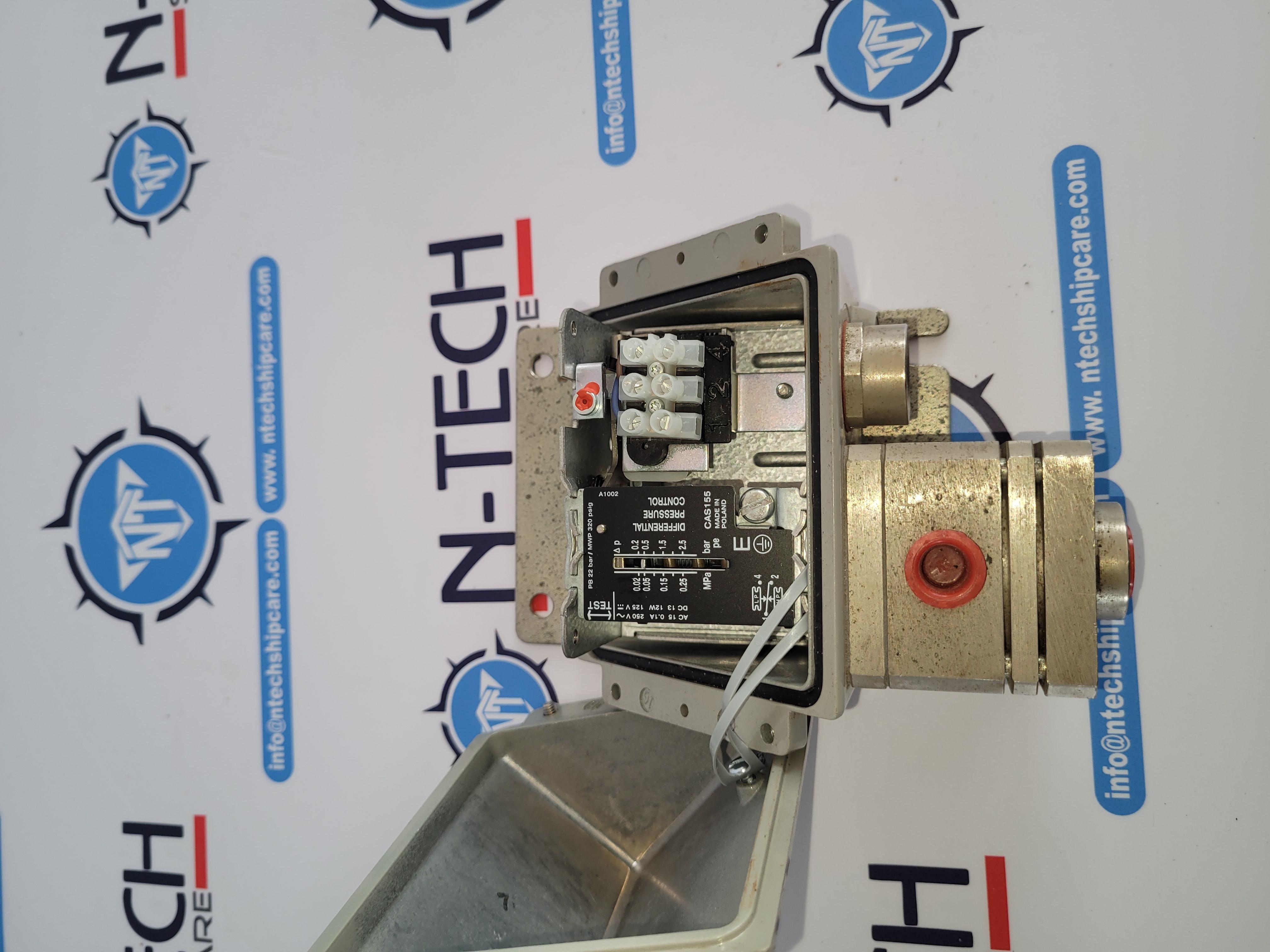

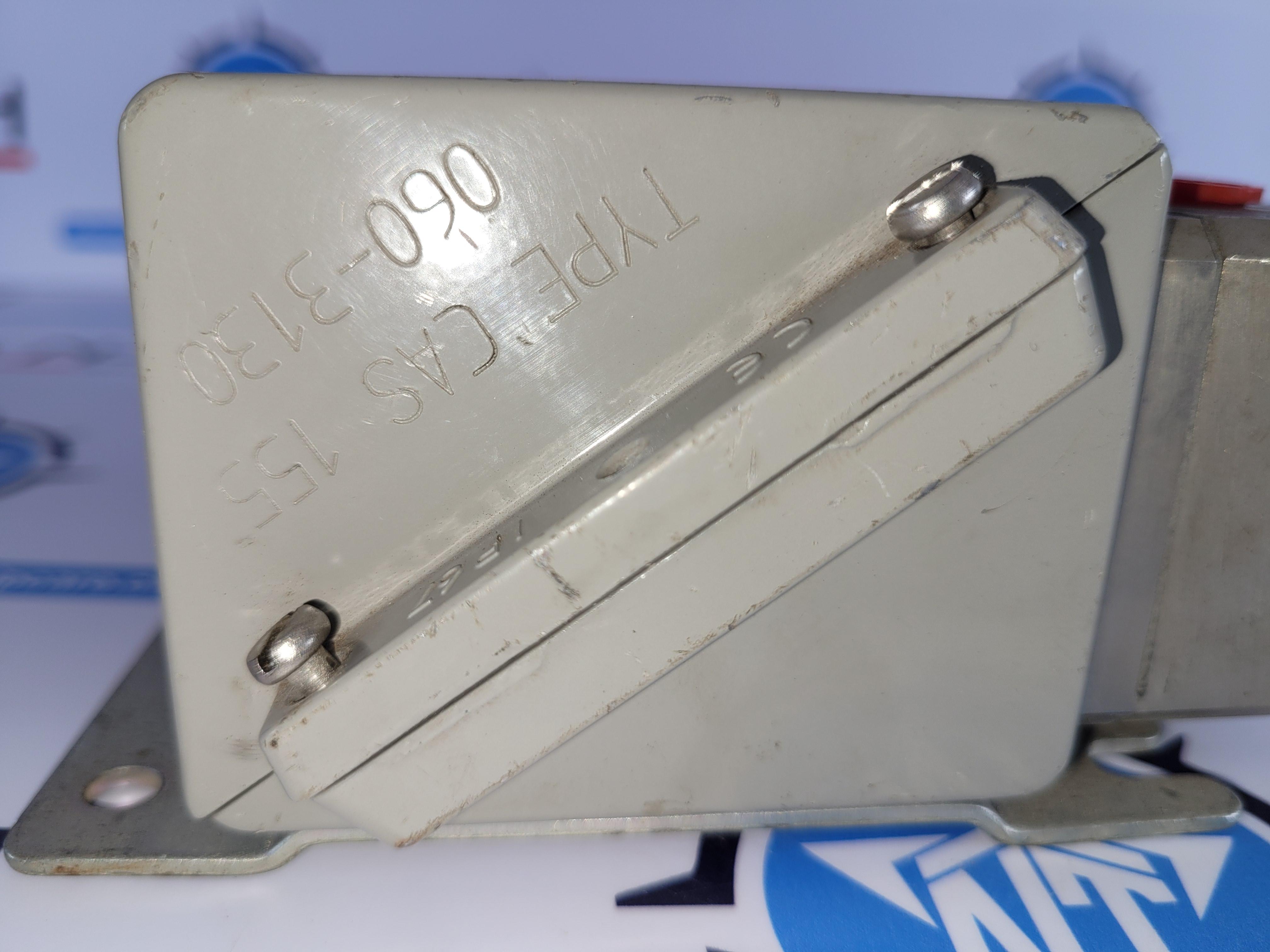

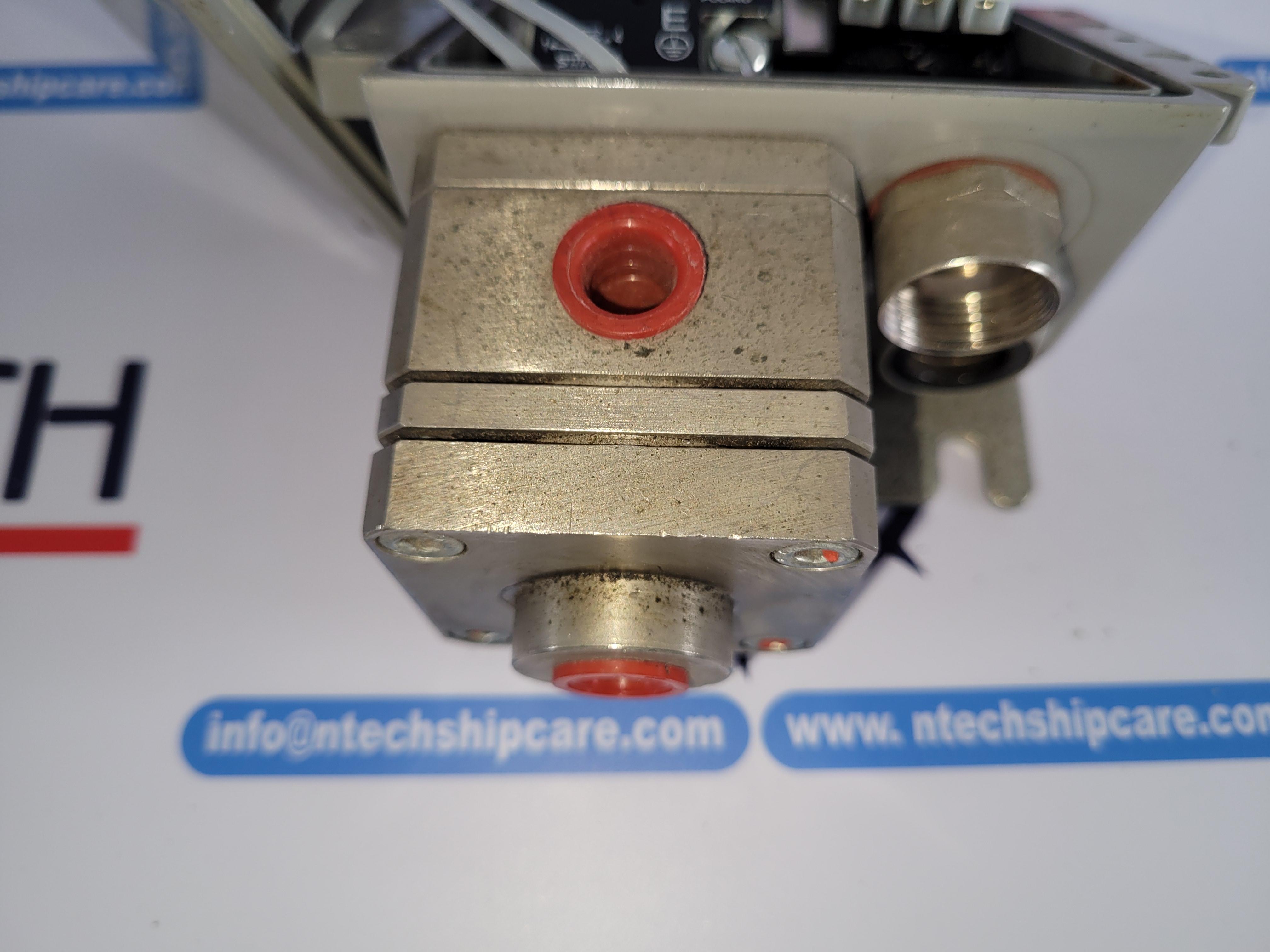

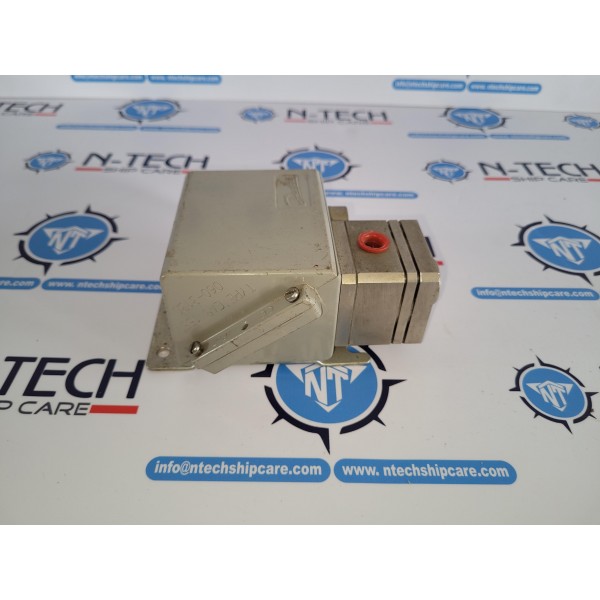

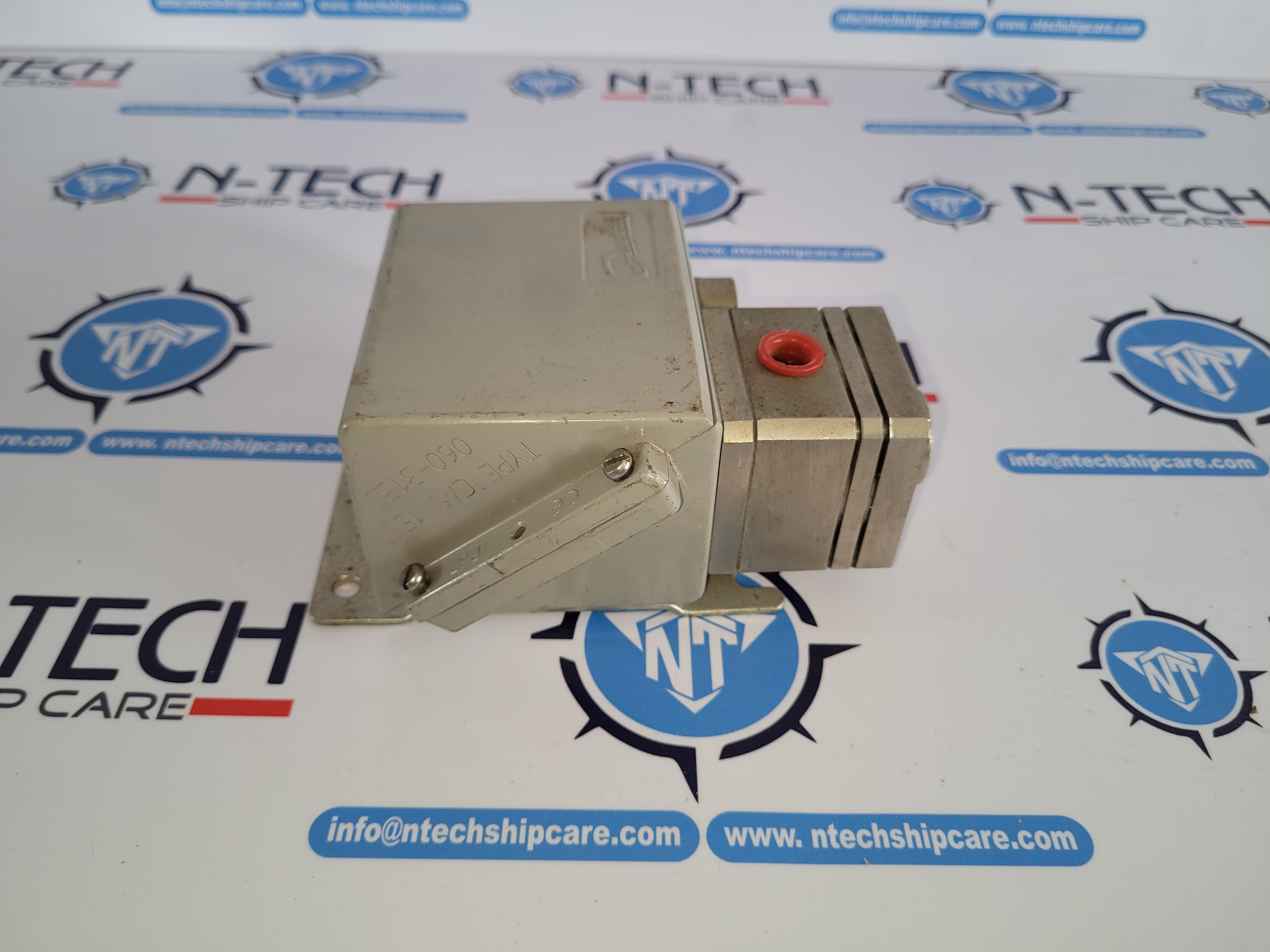

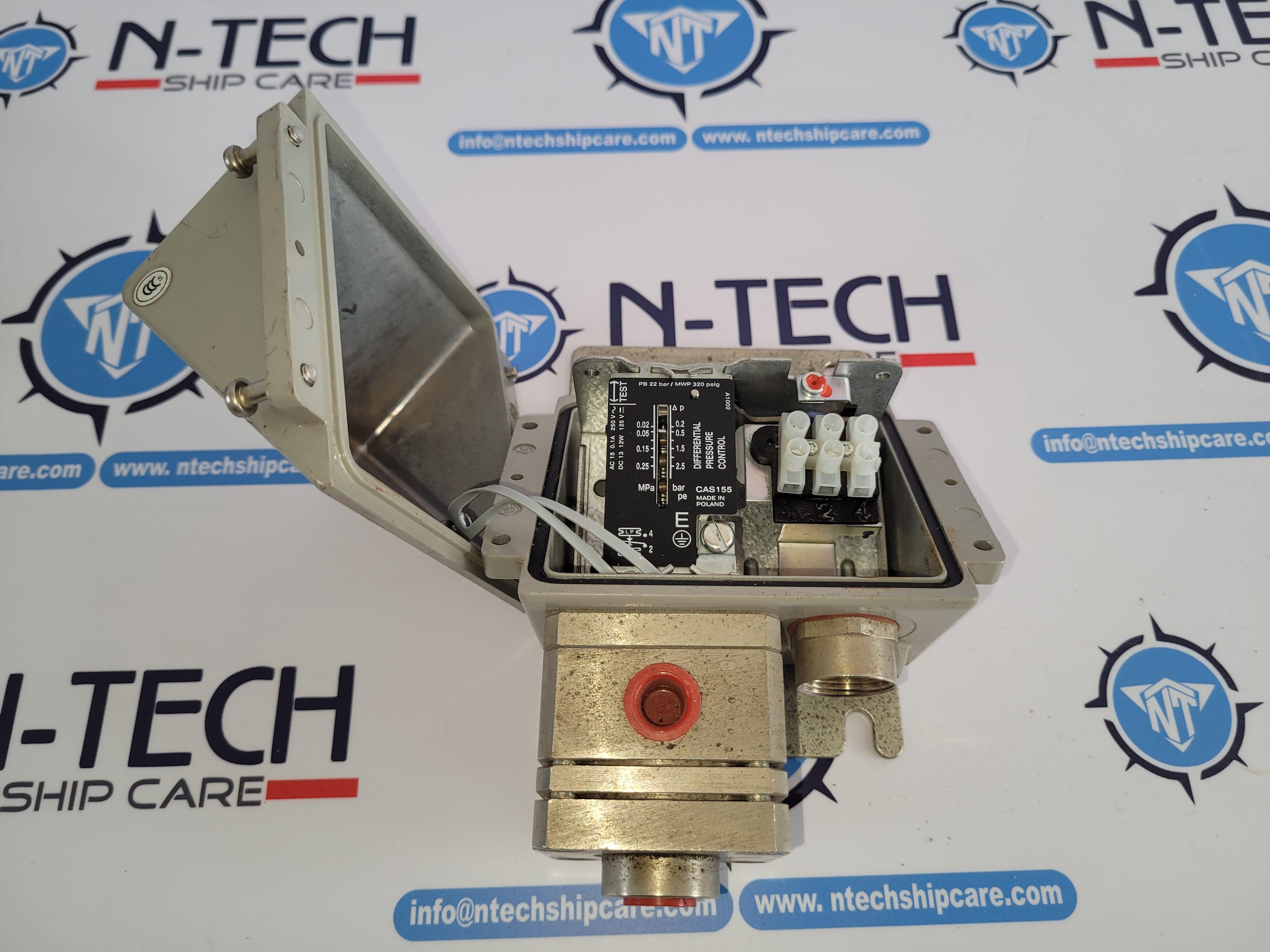

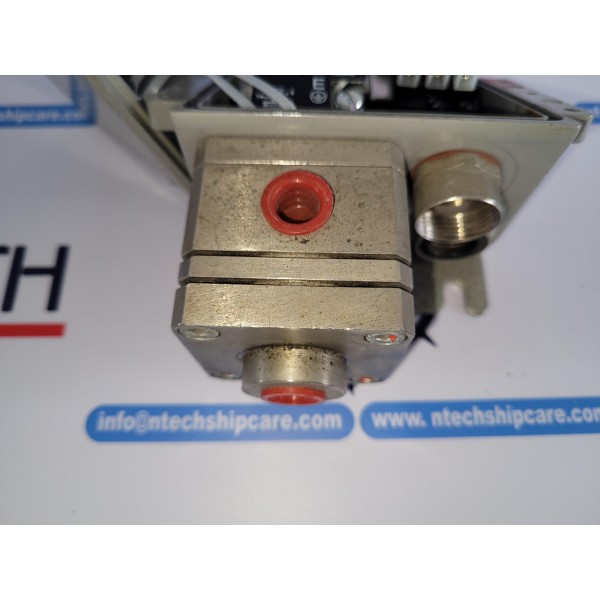

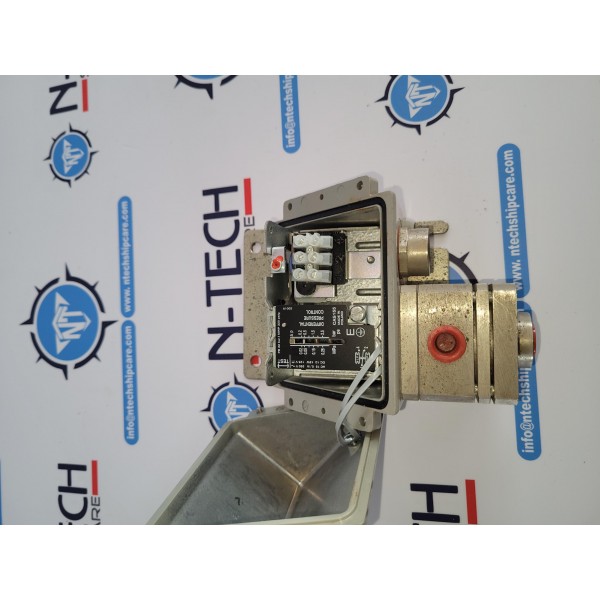

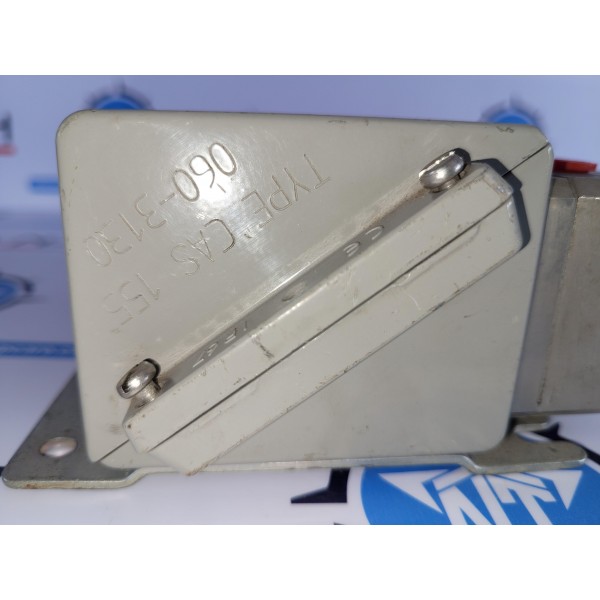

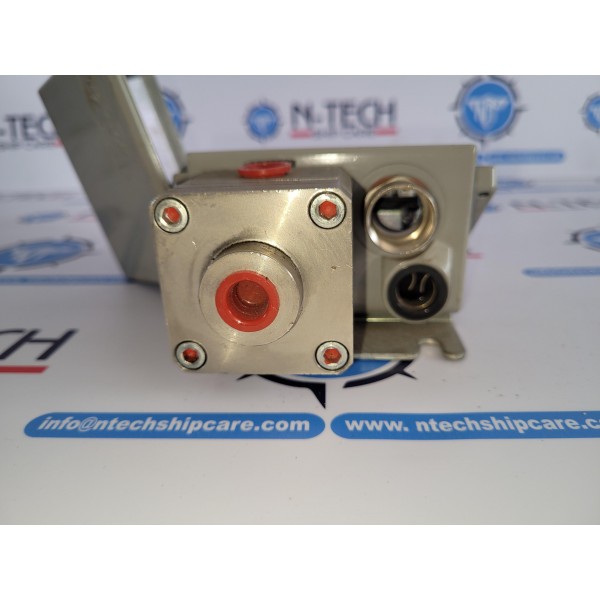

Danfoss Pressure Switch CAS-155
Product details
Gross weight | 1.622 Kg |
Net weight | 1.546 Kg |
Volume | 2.413 Liter |
EAN | 5702423151646 |
Ambient temperature range [°C] [max] | 70 °C |
Ambient temperature range [°C] [min] | -25 °C |
Ambient temperature range [°F] [max] | 158 °F |
Ambient temperature range [°F] [min] | -13 °F |
Approval | ABS BV CCC CE DNV EAC GL LLC CDC EURO-TYSK LR LVD NKK RINA RMRS RoHS RoHS China TYSK UKCA |
Burst pressure [bar] | 42 bar |
Contact differential [bar] | 0.1 bar |
Contact function | SPDT |
Contact rating | AC15=0.1 A, 220 V DC13=12 W, 125 V |
Diff.press.setting range [bar] [max] | 2.5 bar |
Diff.press.setting range [bar] [min] | 0.2 bar |
Diff.press.setting range [MPa] [max] | 0.25 MPa |
Diff.press.setting range [MPa] [min] | 0.02 MPa |
Diff.press.setting range [psi] [max] | 36.2 psi |
Diff.press.setting range [psi] [min] | 2.9 psi |
Electrical conn. comments | Metal cable gland |
Electrical conn. Male/Female | Female |
Electrical connection | Screwed cable entry |
Electrical connection size | Pg 13.5 |
Electrical connection standard | DIN 40430 |
Enclosure rating IP | IP67 |
Max. test pressure [bar] Pe | 22 bar |
Max. test pressure [psig] | 319 psig |
Max. Working Pressure [bar] | 22 bar |
Max. Working Pressure [psig] | 319 psig |
Operat. range LP side [bar] Pe [max] | 8 bar |
Operat. range LP side [bar] Pe [min] | 0 bar |
Operat. range LP side [psig]Pe [max] | 115 psig |
Operat. range LP side [psig]Pe [min] | 0 psig |
Packing format | Multi pack |
Pressure connection size | 1/4 |
Pressure connection standard | ISO 228-1 |
Pressure connection type | G |
Pressure Male/Female | Female |
